Real-Time GPS Data Analysis (click here for all timeseries)

The Pacific Northwest Geodetic Array (PANGA) uses real-time GPS measurements to monitor crustal deformation and mitigate natural hazards throughout the Pacific Northwest. These hazards arise from earthquakes, volcanic eruptions, landslides, and coastal sea-level encroachment. In addition, PANGA GPS measurements are used to monitor man-made structures such as Seattle's sagging Alaska Way Viaduct, 520 and I90 floating bridges and power-generation/drinking-supply dams throughout the Cascadia subduction zone, including the megadams along the Columbia River. GPS data are telemetered in real-time back to CWU, where they are processed in real-time using both JPL's RTG software as well as Trimble's RTKNet Integrity Manager software to provide relative positioning of several mm resolution. Here we provide an overview of real-time GPS data, CWU's PANGA analysis activities and data processing algorithms.

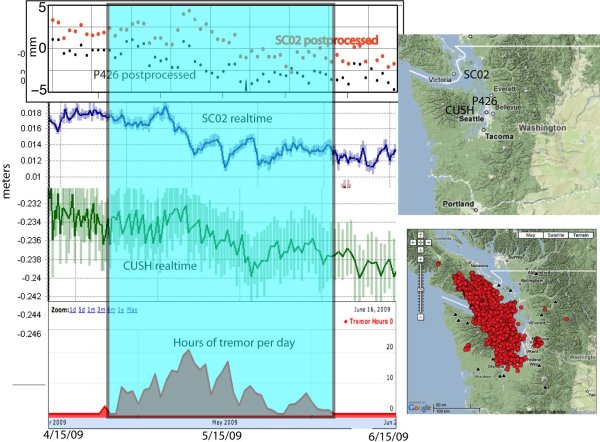

Real-time plot of GPS measurements at station SC02 (Friday Harbor). Click here for all real-time data.

*Compatible with browsers employing modern industry standards for plotting maps and data streams such as: Safari, Google Chrome, Mozilla Firefox and Opera.

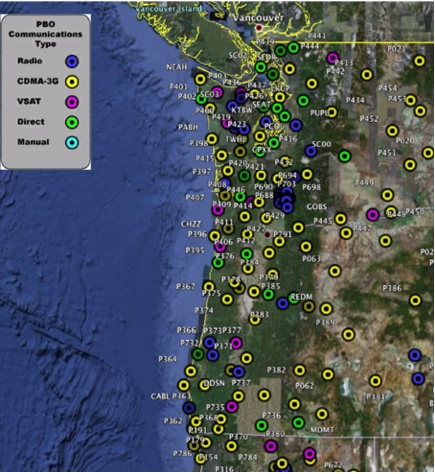

Overview of PANGA real-time GPS

Through its unique ability to resolve unforeseen modes of plate boundary deformation, continuous GPS measurements along the Cascadia subduction zone have revolutionized both our basic knowledge of interplate fault processes as well as how we assess earthquake hazards and strategize their mitigation. GPS has resolved several dozen Cascadia megathrust slow slip events, for instance, that indicate a wide variability in plate coupling along strike. The largest events typically last several weeks, propagate hundreds of kilometers, and have moment magnitudes of 6.3-6.8. Similar measurements on other plate boundaries have also forced the recognition that slow slip events are widespread and can both trigger and be triggered by conventional earthquakes. How the northern Cascadia transients interact with local seismicity remains an open question, but, averaged over many events, they appear to delineate a down-dip limit of the eventual megathrust rupture that lies far closer to the major population centers of the Pacific Northwest than is typically assumed in strong ground motion simulations. Traditional analyses (one position estimate per day, two-week latency with final orbits/clocks) are uniquely able to resolve these and many related questions about subduction zone geodynamics, and has pointed the way towards a measurable and dramatic reduction of seismic hazards in Cascadia.

GPS is no longer limited to daily positioning of steady-state deformation. Arguably the most stunning recent technological improvement is resolving dynamic ground motions at amplitudes down to a few centimeters and frequencies up to a 1 hz with high-sampling rate receivers.

Click here for GPS data plots

Some applications of real-time GPS include but are definitely not limited to:

Hazard Warnings and Mitigation with Real-time GPS

The scientific and hazards mitigation potential of high-rate GPS cannot be overstated, and in real-time, its ability to guide instrument deployment during tectonic/volcanic events, or to assist societies in mitigating damage from earthquakes, volcanic events, landslides, or tsunami generation, is unique. Unlike conventional seismometers, high-rate GPS positions are stable in extreme ground motion and maintain fidelity across the long period spectrum, out to and including static offsets. The signal to noise ratio of position resolution increases as motion amplitude increases towards arbitrarily large values. GPS displacements are estimated directly and are therefore not subject to tilt/acceleration ambiguities present in force-balance/strong motion seismometers. The ability to stay on scale and accurately measure near-field dynamic velocities of meters or 10's of meters per second without clipping or aliasing has no other instrumental analog and is unique to GPS. Today, real-time GPS data can be fed into seismic strong-ground motion analyses for emergency response purposes.
